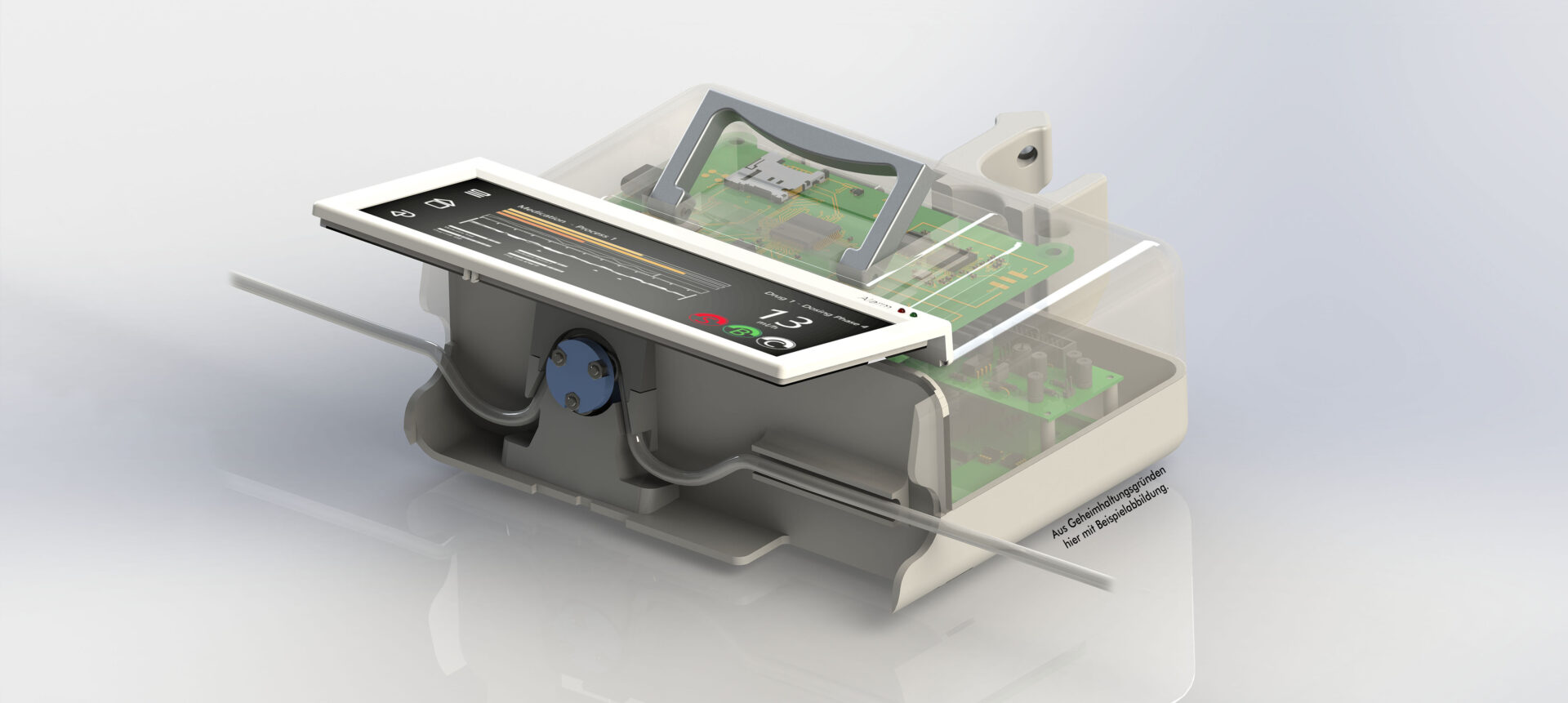

Infusion Pump

A wide variety of challenges.

An infusion pump works directly on humans, including children. It is often used in hectic and life-threatening situations: in speeding ambulances or in intensive care units. Extreme reliability and precision are required here. The requirements for an infusion pump are correspondingly diverse. We were responsible for the mechanical development with a correspondingly large number of interfaces to other areas. Starting with industrial design, through electronics development to usability.
Furthermore, precision in the most compact installation space was the task. So we developed a device in which good design is “filled” with the latest technology down to the last cubic millimetre. The infusion pump provides the required tightness, for example against bursting infusion bags. It continues to function reliably, even if dropped from a height of 1 metre. And thanks to the significantly improved delivery accuracy of the device compared to its predecessor, the risk of incorrect dosing of highly effective drugs and its fatal consequences is significantly reduced.
The result is a pump that exceeds today’s standards. We are proud to have already developed the innovative technology of the future today!

Flexible team of between 5 and 15 people for pump and system development

SolidWorks, CETOL 6σ, Polarion

Robust device with maximum conveying accuracy

The collaboration with B&W has been very beneficial for all trades! And on top of that, we have found true partners in the team.

null
</p> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'><strong>Compact device design</strong></div> <div class='wp-block-getwid-image-hotspot__tooltip-title'> Space in hospitals is expensive, both in operating theatres and intensive care units. Compact devices have a competitive advantage here. We know how to develop such devices. Using three-dimensional tolerance analyses, among other things, we have developed a device in this project with very high requirements for the internal components to be integrated, which ensures reliable assembly even with high quantities. In the event of servicing, our calculation results also allow complete assemblies to be replaced without adjustment, ensuring quick and uncomplicated repairs.</div> </div> <p>
</p> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'><strong>Strong housing</strong></div> <div class='wp-block-getwid-image-hotspot__tooltip-title'> Devices used in everyday hospital life must be robust so that they continue to work reliably even if they are dropped in hectic situations. Our task was to design the housing and internal functional mechanisms in such a way that the device is always available to patients. We used clever solutions to arrange the internal components in a smart way and designed an extremely rigid device shell using construction tricks. We carried out various drop tests to verify the progress of the development.</div> </div> </div> </div> </div> <p>
</p> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'> <div class='wp-block-getwid-image-hotspot__tooltip-title'><strong>User Interface</strong></div> <div class='wp-block-getwid-image-hotspot__tooltip-title'> We were happy to take on the challenge of installing a resistive touchscreen with the transparency of a capacitive touchscreen. We are experts in electromechanical systems and were able to use our know-how to achieve optimal ‘transparency’. We held discussions with suppliers, worked out the complete specifications together with the customer’s development departments and were able to develop the optimal touchscreen using a wide variety of sample designs.</div> </div> </div> </div> </div> </div> </div> <p>
